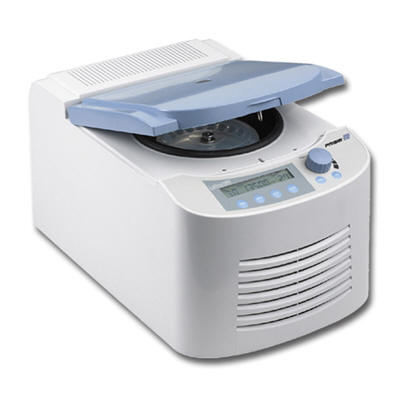

Labnet Prism R Refrigerated Microcentrifuge
Product Information:
The new Labnet Prism R is quickly becoming the benchmark in the
refrigerated microcentrifuge category. In spite of its remarkably small
footprint, the Prism R has a powerful brushless motor and cooling capacity to
spare. The new user-friendly LCD control panel provides intuitive control over
all operating parameters, including speed, time and temperature.
Speed can be set in rpm, up to 13,500 rpm in increments of
100 rpm, or rcf, up to 17,135 x g in increments of 100 x g. Operation of the
centrifuge can be timed, from 0.5 to 99 minutes, or continuous. A momentary spin
function is activated by pressing and holding the quick key. The powerful
refrigeration system maintains temperatures as low as -10�C and is designed to
reach 4�C (from room temperature) in less than 8 minutes.
The brushless motor drive quickly and effortlessly
accelerates the rotor to set speed. A computer designed isolation system ensures
vibration free operation, even with a slight imbalance. The Prism R is also
equipped with an imbalance detection system that automatically shuts down
operation in the event of a significant imbalance. Deceleration at the end of a
run is attained in less than 18 seconds, yet will not disrupt samples.
The unique design of the 24 place rotor allows easy access to the tops of sample tubes. Individual tube slots in the solid aluminum rotor support the tubes along their length and contain sample in the event of tube failure. The rotor accepts 1.5/2.0ml tubes directly and smaller tubes through the use of adapters, sold separately. An optional StripSpin adapter snaps on to the top of the rotor for spinning 0.2ml tubes and PCR strips. The rotor is seated on a tapered shaft which facilitates easy removal of the rotor for cleaning and autoclaving.
Product Specifications:
| Max. Speed | 13,500 rpm |
| Max. RCF | 17, 135 x g |
| Temp. Range | -10 to 40�C |
| Dimensions | 10.9(W) x 17.75(D) x 9.75(H) |
| Dimensions (cm) | 27.7(W) x 45(D) x 24.75(H) cm |
| Timer | 0.5 to 99 min. with continuous and momentary |
| Cooling Time (Room Temp. to 4�C) | 8 min. |
| Electrical | ~120 or ~230V, 50/60Hz |
| Weight | 44 lb. / 20 kg. |
